Densities in Spherical Coordinates

Spheres occur frequently in applications, and as a result, questions involving densities for spheres are commonplace.  For example, let's consider the charge density given by

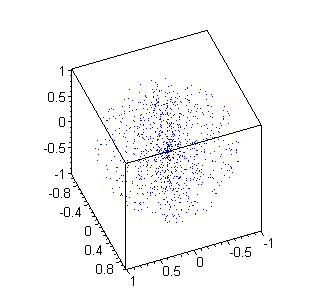

Below we have distributed 1,000 "charges" in a sphere of radius 1 meter based on this density.



(commands used to generate figure above)

In cartesian coordinates, the total charge is given by 3 iterated integrals:

>	Q:=Int(Int(Int(1000/Pi*sqrt(x^2+y^2+z^2),z=-sqrt(1-x^2-y^2)..sqrt(1-x^2-y^2)),y=-sqrt(1-x^2)..sqrt(1-x^2)),x=-1..1); value(%);

>

In cartesian coordinates, Maple is unable to evaluate the integral. However, in spherical coordinates, the triple integral would instead result in

>	Q:=Int(Int(Int((1000/Pi*rho)*rho^2*sin(phi),rho=0..1),phi=0..Pi),theta=0..2*Pi); Q:=value(%);

>

Let's look at another example.  Let's consider a solid sphere with a uniform mass density of  = 5 .    If we assume that each small "chunk" of a solid with mass dM  exerts a small amount of potential dU , then the inverse square field potential on an object at (0,0,3) due to the "chunk" is given by

Let's convert this into spherical coordinates and then integrate to find the total potential acting on an object at (0,0,2).

To begin with, let's define dU in cartesian coordinates.

>	dU:=5*dV/sqrt(x^2+y^2+(z-3)^2);

>

 Next, let's convert the integrand into spherical coordinates by substituting for x, y , and z :   Also, we let dV  =  since the differentials will be handled by the Int  command.

>	dU:=subs(x=rho*sin(phi)*cos(theta),y=rho*sin(phi)*sin(theta),z=rho*cos(phi),dV=rho^2*sin(phi),dU); dU:=simplify(%);

>

Now let's integrate dU over the sphere to find the total potential U.

>	U:=Int(Int(Int(dU,rho=0..1),phi=0..Pi),theta=0..2*Pi); U:=value(%);

>
